CLUB CAR CURRENT LSV
The Club Car Current LSV can be driven on roads up to 35mph and offers the durability of a pickup truck and the efficiency of an electric vehicle.
ALL-PURPOSE, ALL-ELECTRIC
The Club Car Current LSV fills the gap between full-sized trucks and smaller utility carts. Its all-electric design features the latest technology for power, comfort, and safety.
Club Car Current is available in three different configurations, pickup, flatbed, and van box.
TAKE A VIDEO TOUR
See all of the incredible features on the new Club Car Current, including:
- Specially designed automotive body panels for enhanced durability.
- LED lighting for increased visibility and brightness for night driving.
- Increased legroom and new cup holder design.
- New two-tone gray bucket seats.
- 1000W heater keeping occupants warm in all weather conditions.
- 170 degree field of view backup camera.
- Latest VRLA gel battery technology for reliable range and maintenance-free batteries.
PRODUCTIVITY ENHANCING ACCESSORIES
The Current LSV can be equipped with several accessories to help boost productivity including a ladder rack, and a Tommy Gate for easy loading of heavy items.
Enhance driver comfort with an optional airflow kit. Differentiate your Club Car Current with customizable exterior graphics.
LOWER EMISSIONS, HIGHER PERFORMANCE
Featuring a 13.4 HP electric motor and payload capacity up to 1,246 lbs., the Current LSV tackles any job with ease while helping your campus meet its zero-emissions goals for transportation.
With a footprint smaller than traditional trucks, the Current LSV allows you to get around campus with flexibility and adaptability you won’t get in a van or full-sized vehicle. Its automotive design includes an updated dashboard displaying vehicle health, speedometer, in-car radio, and ventilation systems.
STREET-LEGAL AND LOW-SPEED
The Current LSV meets low-speed vehicle compliant safety standards for the United States and Canada and comes with a Vehicle Identification Number (VIN), which means it can be driven on roads posted 35 mph or less. This gives the Current LSV access to more types of roads than a smaller utility vehicle, with gel batteries that contain enough range for a full day of use on campus.
AVAILABLE CARGO OPTIONS

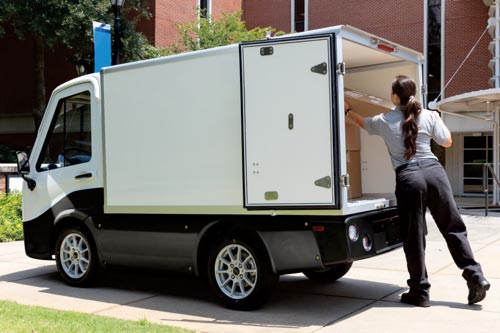

Van Box
Pickup with Sides
Flatbed
SPECIFICATIONS & FEATURES
SPECIFICATIONS
SPECIFICATIONS
Club Car Current LSV
| Length: | 155 in. / 393.7 cm |
| Width: | 60 in. / 152.4 cm |
| Height: | 76 in. / 193 cm |
| Curb Weight/Flatbed: | 2,039 lbs. / 924 kg |
| Curb Weight/Pickup: | 2,090 lbs. / 948 kg |
| Curb Weight/Van Box: | 2,200 lbs. / 997 kg |
| Payload Capacity: | 1,100 lbs. / 498.9 kg / 1/2 ton |
| Top Speed: | Up to 25 mph / 40 km/h / LSV / Varies by State |
| Grade: | Up to 22% |
| Turning Radius: | 157 in. / 3.9 m / 13’ 1” |
| Acceleration: | 0 – 20 mph in > 6 seconds / 0 – 32 km/h in > 6 seconds |
| Braking Distance: | 25 ft. @ 25 mph / 7.6 m @ 40 km/h / Best in Class |
| Range: | Up to 57 mi. / 91 km |
| Recharge: | Up to 6-8 hours / 110V/15A |
| Warranty: | Vehicle: 2 years* |
| Warranty: | Batteries: 2 years* |
| Backup Camera: | Standard |
| LCM Display: | Standard / 7 in. / 17.7 cm |
| Parking Brake: | Manual – Standard |
| Body Panels: | Reinforced ABS / Corrosion-resistant |
| Cabin Air: | Heating + Ventilation |
| Motor: | 10 Kw |
| Horsepower: | 13.4 HP |
| Motor Controller: | 240A AC Controller |
| Drive System: | 2-wheel Rear Wheel Drive |
| Flatbed: | 47.5 in. / 120.6 cm H |
| 55.25 in. / 140.3 cm W | |
| 88 in. / 223.5 cm L | |
| Pickup: | 47.5 in. / 120.6 cm H |
| 55.25 in. / 140.3 cm W | |
| 94.5 in. / 240 cm L | |
| Van Box: | 47.5 in. / 120.6 cm H |
| 55.25 in. / 140.3 cm W | |
| 91.5 in. / 232.4 cm L | |
| Van Box Volume: | 123 sq. ft. / 11.43 sq. m |
| Type: | VRLA (120 Ah) |
| Voltage: | 72V |
| Number of Batteries: | 6 |
| Capacity: | 8.64 kWh |
| Chassis: | Reinforced Steel / Coated |
| Suspension: | Front: Transverse Leaf Spring Rear: Horizontal Spring with Coil-over Shock |
| Brakes: | Disc / 4-wheel, Hydraulic |
| Steering: | Power Assist |
What is a Low Speed Vehicle (LSV)?
SAFETY STANDARDS OF CLUB CAR LSV’S
All LSV vehicles must meet all U.S. federal safety standards (FMVSS 500) which require a registered VIN number, automotive safety windshield glass, safety belts, turn signals, headlamps, brake lights, horn, mirrors, reflex reflectors, a parking brake and a rear view camera. They also must meet state and local laws which can include windshield wipers and warning beacons.
In addition to federal, local and state laws the Society of Automotive Engineers created a voluntary industry standard for LSVs with SAEJ2358 LSV. This voluntary safety standard includes additional detailed requirements.
Club Car LSVs meet not only FMVSS500 LSV standards but also fully comply with the more stringent automotive SAEJ2358 standards with the inclusion of Occupant Protective Structures on all cars.
